Family Home Plans - Better Living By Good Design

Plan 51698 | Order Code: 00WEB

FamilyHomePlans.com
800-482-0464

Click-To-Print This Page

Specifications

  • 1309 Total Living Area
  • 179 Main Level
  • 1130 Upper Level
  • 1 Bedrooms
  • 1 Full Bath(s)
  • 1 Half Bath(s)
  • 2 Car Garage
  • 30'9 Wide x 36'9 Deep
Available Foundation Types:
  • Slab

Plan Pricing

  • PDF File: $1,435.00
  • 5 Sets: $1,666.00
  • 5 Sets plus PDF File: $1,728.00
  • CAD File: $2,135.00
  • Materials List: $368.75
  • Right Reading Reverse: $200.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $49.00
* prices shown w/o any discounts applied

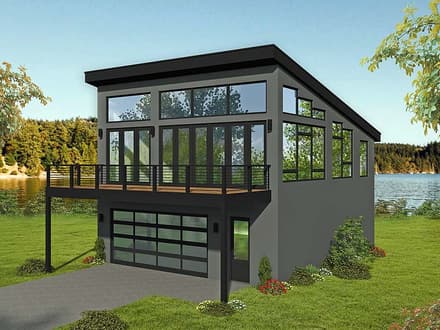

Plan 51698 | Order Code: 00WEB | Elevation

Reverse Plan


Plan 51698 | Order Code: 00WEB | First Floor Plan

Reverse Plan


Plan 51698 | Order Code: 00WEB | Second Floor Plan

Reverse Plan


Plan 51698 | Order Code: 00WEB | Rear Elevation

Specifications

  • Total Living Area: 1309
  • Main Living Area: 179
  • Upper Living Area: 1130
  • Garage Area: 951
  • Garage Type: Drive Under
  • Garage Bays: 2
  • House Width: 30'9
  • House Depth: 36'9
  • Number of Stories: 2
  • Bedrooms: 1
  • Full Baths: 1
  • Half Baths: 1
  • Max Ridge Height: 28'7' from Front Door Floor Level
  • Primary Roof Pitch: 2.5:12
  • Roof Framing: Stick
  • Deck: 290 sq ft
  • 2nd Floor Laundry: Yes
  • Main Ceiling Height: 10'
  • Upper Ceiling Height: 7'
  • Vaulted Ceiling: Yes

Available Foundation Types:

  • Slab

Plan Pricing

  • PDF File: $1,435.00
  • 5 Sets: $1,666.00
  • 5 Sets plus PDF File: $1,728.00
  • CAD File: $2,135.00
  • Materials List: $368.75
  • Right Reading Reverse: $200.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $49.00

Materials List may take 3-5 weeks to fulfill depending on availability.

* prices shown w/o any discounts applied

Plan 51698 | Order Code: 00WEB
FamilyHomePlans.com
800-482-0464

Plan Modifications

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Plan 51698 | Order Code: 00WEB
FamilyHomePlans.com
800-482-0464

COPYRIGHT NOTICE. It is illegal to build this plan without a legally obtained set of plans. It is illegal to copy or redraw these plans. Violation of U.S. copyright laws are punishable with fines of up to $200,000. After the purchase of plans, changes may be made by a qualified professional.
